Azure Storage Encryption

Lecture 7: EncryptionScott Duffy AZ-104

Overview

All data in Azure Storage is encrypted at rest by default -- this has been the case since 2017. When creating a storage account, the encryption tab presents a critical decision: who manages the encryption keys? This choice is permanent and cannot be changed after the storage account is created.

Azure Storage encryption is applied transparently using 256-bit AES encryption, one of the strongest block ciphers available, and is FIPS 140-2 compliant.

Critical Limitation

The encryption key management choice (Microsoft-managed vs. customer-managed) is permanent. Once a storage account is created, this setting cannot be changed. You must decide at account creation time. Plan your encryption strategy before provisioning any storage accounts.

Encryption at Rest vs. In Transit

At rest: All data stored on disk is encrypted using AES-256. This is what the encryption tab configures.

In transit: Data moving between your client and Azure is protected by TLS 1.2 (enforced via the Require secure transfer setting on the Advanced tab). These are two separate layers of protection.

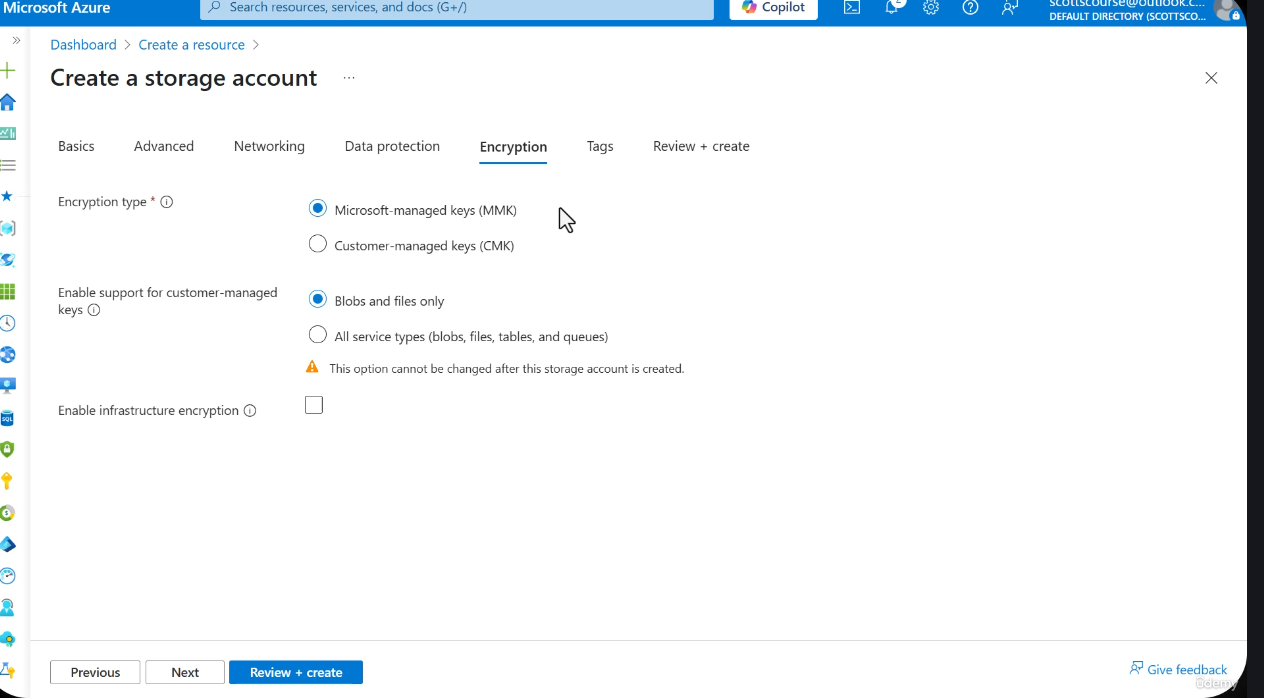

Encryption tab configuration in the Azure Portal

Encryption Key Management Options

There are three key management strategies, each adding a layer of control and complexity.

1. Microsoft-Managed Keys (MMK) -- Default

Microsoft-managed keys use Transparent Data Encryption (TDE). Microsoft handles the entire encryption lifecycle transparently -- you never interact with the keys directly.

Aspect	Detail
Key ownership	Microsoft creates, stores, and rotates keys
User interaction	None -- completely transparent
Upload flow	Upload unencrypted data -> Microsoft encrypts on disk
Download flow	Microsoft decrypts on read -> You receive unencrypted data
Key management burden	Zero
Recommendation	Default choice unless a specific policy requires otherwise

Best Practice

Unless your organization has a specific compliance requirement mandating key ownership or custom rotation schedules, Microsoft-managed keys are the recommended choice. They provide strong encryption with zero operational overhead.

2. Customer-Managed Keys (CMK)

Customer-managed keys give your organization direct control over encryption keys. Microsoft still performs the encryption and decryption transparently, but it uses your keys instead of its own.

Aspect	Detail
Key ownership	You create and manage the keys
Key storage	Azure Key Vault (required)
Encryption behavior	Still transparent -- Microsoft uses your keys automatically
Complexity	Higher -- requires Key Vault setup, Entra ID integration, access policies
Service scope	Must specify: blobs/files only, OR all service types (tables/queues included)
Use cases	Company policies on key rotation, regulatory key management control

Exam Tip

When configuring CMK, you must choose which services use customer-managed keys. The options are:

Blobs and files only -- tables and queues fall back to Microsoft-managed keys
All service types -- blobs, files, tables, and queues all use your CMK

This distinction is a common exam topic. The service scope choice is also made at creation time.

Key Vault Integration Steps for CMK

Create an Azure Key Vault with purge protection enabled (required for CMK)
Generate or import an RSA key (2048-bit or 3072-bit recommended)
Register the storage account's identity with Entra ID (system-assigned managed identity)
Grant the storage account Key Vault Crypto Service Encryption User role on the key
Configure the storage account to reference the Key Vault and key name
Enable automatic key rotation (optional but recommended) so the storage account picks up new key versions automatically

The storage account must have a managed identity in Entra ID to authenticate against the Key Vault. This is configured automatically when you select CMK in the portal.

3. Infrastructure Encryption (Double Encryption)

Infrastructure encryption adds a second layer of encryption on top of the service-level encryption (whether MMK or CMK). It is disabled by default and is optional.

Aspect	Detail
Default state	Disabled
How it works	Data is encrypted once at the service level, then the result is encrypted again at the infrastructure level
Cost	No additional charge
Performance impact	Minimal additional latency during data ingestion
Use case	Extreme security requirements, defense-in-depth compliance mandates
Compatibility	Works with both Microsoft-managed and customer-managed keys

How Double Encryption Works

With infrastructure encryption enabled, an adversary who somehow defeats one layer of encryption would still face a second, independent encryption layer before reaching your plaintext data. The two layers use different encryption algorithms and different keys, making a combined attack significantly harder.

Encryption Architecture Diagrams

Encryption Layers

Customer-Managed Keys Architecture

txt

direction: right

title: CMK Architecture {
  style.font-size: 28
}

storage: Storage Account {
  style.fill: "#e8f4f8"
  blobs: Blob Service {style.fill: "#b8d4e8"}
  files: File Service {style.fill: "#b8d4e8"}
  tables: Table Service {style.fill: "#b8d4e8"}
  queues: Queue Service {style.fill: "#b8d4e8"}
}

keyvault: Azure Key Vault {
  style.fill: "#f4e8f4"
  key: RSA Encryption Key {style.fill: "#d4b8d4"}
  policy: Access Policies {style.fill: "#d4b8d4"}
}

entra: Microsoft Entra ID {
  style.fill: "#f4f4e8"
  identity: Managed Identity {style.fill: "#d4d4b8"}
  rbac: RBAC Assignments {style.fill: "#d4d4b8"}
}

storage -> keyvault: Requests encryption key {
  style.stroke: "#38a"
}
keyvault -> entra: Validates identity & permissions {
  style.stroke: "#a63"
}
entra -> storage: Grants managed identity {
  style.stroke: "#4a9"
}

Encryption Decision Tree

Encryption Scopes

John Savill

Encryption scopes let you manage encryption at the container or blob level rather than the entire account. Each scope defines its own key source, giving you fine-grained control over how data is encrypted within a single storage account.

How Encryption Scopes Work

Scope Level	How It Works
Per-container	Set a default encryption scope on the container -- all blobs inherit it
Per-blob	Override the container scope on individual blob uploads
Mixed keys	Different scopes can use different key sources (MMK + CMK in same account)

Cross-Tenant Customer-Managed Keys

A common SaaS scenario involves storing data for multiple customers in a single storage account while giving each customer full control over their own encryption key:

Your application stores data for multiple customers in one storage account
Each customer keeps their encryption key in their own Key Vault (their own tenant)
You create an encryption scope per customer referencing their Key Vault key
The customer can revoke access at any time by removing your application's access to their key
Your application immediately loses the ability to decrypt their data

Exam Tip

Cross-tenant CMK is a common exam scenario. The customer retains control of the key and can revoke access at any time.

Service Scope Limitations

DANGER

Default CMK (account-level) applies to Blob and Files only
Queue and Table CMK requires setting at account creation time (the "All service types" encryption option)
This CANNOT be changed after account creation

Creating an Encryption Scope

Portal Walkthrough

Navigate to storage account > Security + networking > Encryption
Click the "Encryption scopes" tab
Click "+ Add encryption scope"
Name the scope (e.g., customer-a-scope)
Select key source: Microsoft-managed OR Customer-managed (specify Key Vault + key)
Optionally enable infrastructure encryption for the scope
Click Create
When creating a container, select the scope as default
When uploading a blob, optionally override with a different scope under Advanced settings

Multi-Tenant Encryption Scope Architecture

txt

direction: right
sa: Storage Account {
  style.fill: "#e8f4f8"
  scope_a: Scope: customer-a {
    style.fill: "#16a34a"
    style.font-color: "#fff"
    label: "CMK from Customer A Key Vault"
  }
  scope_b: Scope: customer-b {
    style.fill: "#2563eb"
    style.font-color: "#fff"
    label: "CMK from Customer B Key Vault"
  }
  scope_default: Scope: default {
    style.fill: "#f59e0b"
    style.font-color: "#fff"
    label: "Microsoft-managed key"
  }
  container_a: Container A {
    label: "Default: customer-a scope"
  }
  container_b: Container B {
    label: "Default: customer-b scope"
  }
}
kv_a: Customer A Key Vault {
  style.fill: "#f0fdf4"
}
kv_b: Customer B Key Vault {
  style.fill: "#eff6ff"
}
sa.scope_a -> kv_a: References
sa.scope_b -> kv_b: References
sa.container_a -> sa.scope_a: Uses
sa.container_b -> sa.scope_b: Uses

Encryption Scope CLI Reference

Azure CLI

bash

# Create encryption scope with Microsoft-managed keys
az storage account encryption-scope create \
  --account-name myaccount \
  --resource-group myRG \
  --name "customer-a-scope" \
  --key-source Microsoft.Storage

# Create encryption scope with customer-managed key
az storage account encryption-scope create \
  --account-name myaccount \
  --resource-group myRG \
  --name "customer-b-scope" \
  --key-source Microsoft.KeyVault \
  --key-uri "https://kvb.vault.azure.net/keys/mykey"

# Create container with default encryption scope
az storage container create \
  --account-name myaccount \
  --name "customer-a-data" \
  --default-encryption-scope "customer-a-scope" \
  --prevent-encryption-scope-override true

Key Rotation

Automating Key Rotation with Key Vault

When using customer-managed keys, automatic key rotation ensures your encryption keys are updated without manual intervention:

Enable auto-rotation on the key in Key Vault (set a rotation policy with a defined interval)
Configure the storage account to use the key's latest version (omit the key version in the CMK configuration)
Azure Storage will automatically detect and adopt new key versions within ~1 hour of rotation
Old data is transparently re-encrypted with the new key version during background operations

Manual rotation is also supported -- generate a new key version in Key Vault and update the storage account reference.

All Data Encrypted at Rest Since 2017

Historical Context

Azure Storage has enforced encryption at rest for all new storage accounts since 2017. In 2020, Microsoft extended this to cover all existing storage accounts retroactively. There is no way to disable encryption at rest -- it is always on.

2017: All new storage accounts encrypted by default
2020: Retroactive encryption applied to all existing accounts
Today: Encryption at rest is mandatory and cannot be disabled

CLI and PowerShell Reference

Create Storage Account with Infrastructure Encryption

Azure CLIPowerShell

bash

# Create a storage account with infrastructure (double) encryption enabled
az storage account create \
  --name myaccount \
  --resource-group myRG \
  --location eastus \
  --sku Standard_LRS \
  --kind StorageV2 \
  --require-infrastructure-encryption true

powershell

# Create a storage account with infrastructure (double) encryption enabled
New-AzStorageAccount `
  -ResourceGroupName "myRG" `
  -Name "myaccount" `
  -Location "eastus" `
  -SkuName "Standard_LRS" `
  -Kind "StorageV2" `
  -RequireInfrastructureEncryption

Create Key Vault for CMK

Azure CLIPowerShell

bash

# Create a Key Vault with purge protection (required for CMK)
az keyvault create \
  --name myKeyVault \
  --resource-group myRG \
  --location eastus \
  --enable-purge-protection true

# Create an RSA encryption key
az keyvault key create \
  --vault-name myKeyVault \
  --name myStorageKey \
  --kty RSA \
  --size 2048

powershell

# Create a Key Vault with purge protection (required for CMK)
New-AzKeyVault `
  -VaultName "myKeyVault" `
  -ResourceGroupName "myRG" `
  -Location "eastus" `
  -EnablePurgeProtection

# Create an RSA encryption key
Add-AzKeyVaultKey `
  -VaultName "myKeyVault" `
  -Name "myStorageKey" `
  -KeyType "RSA" `
  -Size 2048

Configure CMK on a Storage Account

Azure CLIPowerShell

bash

# Assign a system-managed identity to the storage account
az storage account update \
  --name myaccount \
  --resource-group myRG \
  --assign-identity

# Get the principal ID for RBAC assignment
PRINCIPAL_ID=$(az storage account show \
  --name myaccount \
  --resource-group myRG \
  --query "identity.principalId" \
  --output tsv)

# Grant Key Vault Crypto Service Encryption User role
az role assignment create \
  --role "Key Vault Crypto Service Encryption User" \
  --assignee "$PRINCIPAL_ID" \
  --scope "/subscriptions/<sub-id>/resourceGroups/myRG/providers/Microsoft.KeyVault/vaults/myKeyVault"

# Configure CMK on the storage account
az storage account update \
  --name myaccount \
  --resource-group myRG \
  --encryption-key-source Microsoft.Keyvault \
  --encryption-key-vault https://myKeyVault.vault.azure.net \
  --encryption-key-name myStorageKey

powershell

# Assign a system-managed identity to the storage account
Set-AzStorageAccount `
  -ResourceGroupName "myRG" `
  -Name "myaccount" `
  -AssignIdentity

# Get the principal ID
$account = Get-AzStorageAccount `
  -ResourceGroupName "myRG" `
  -Name "myaccount"
$principalId = $account.Identity.PrincipalId

# Grant Key Vault Crypto Service Encryption User role
New-AzRoleAssignment `
  -ObjectId $principalId `
  -RoleDefinitionName "Key Vault Crypto Service Encryption User" `
  -Scope "/subscriptions/<sub-id>/resourceGroups/myRG/providers/Microsoft.KeyVault/vaults/myKeyVault"

# Configure CMK on the storage account
Set-AzStorageAccount `
  -ResourceGroupName "myRG" `
  -Name "myaccount" `
  -KeyvaultEncryption `
  -KeyVaultUri "https://myKeyVault.vault.azure.net" `
  -KeyName "myStorageKey"

Check Encryption Settings

Azure CLIPowerShell

bash

# View encryption configuration for a storage account
az storage account show \
  --name myaccount \
  --resource-group myRG \
  --query "encryption" \
  --output json

# Check if infrastructure encryption is enabled
az storage account show \
  --name myaccount \
  --resource-group myRG \
  --query "encryption.requireInfrastructureEncryption" \
  --output tsv

powershell

# View encryption configuration for a storage account
$account = Get-AzStorageAccount `
  -ResourceGroupName "myRG" `
  -Name "myaccount"
$account.Encryption | ConvertTo-Json -Depth 5

# Check if infrastructure encryption is enabled
$account.Encryption.RequireInfrastructureEncryption

Summary Comparison

Feature	Microsoft-Managed Keys (MMK)	Customer-Managed Keys (CMK)	Infrastructure Encryption
Default	Yes	No	No (disabled)
Key management	Microsoft handles everything	You create/manage in Key Vault	Adds second encryption layer
Complexity	None	High (Key Vault + Entra ID)	None (single toggle)
Cost	Included	Key Vault charges apply	No additional charge
Can change after creation	No	No	No
Use case	Most workloads	Regulatory/compliance requirements	Extreme security requirements
Works with	All services	Blobs/files or all services	Both MMK and CMK

MS Learn References

Lab Exercises

Prerequisites

Ensure you have an active Azure subscription (a free trial works) and the Azure CLI installed locally or access to Azure Cloud Shell.

Lab 1: Observe Default Encryption (Microsoft-Managed Keys)

Navigate to the Azure Portal
Create a new storage account with all default settings (Standard LRS, StorageV2)
After deployment, navigate to the storage account
In the left menu, go to Security + networking > Encryption
Observe that Microsoft-managed keys is selected
Note the encryption type is AES-256 and covers all services (blobs, files, tables, queues)
Verify that infrastructure encryption is not enabled

Lab 2: Create a Storage Account with Infrastructure Encryption

Create a new storage account (infrastructure encryption cannot be added to existing accounts)
On the Encryption tab during creation:
- Leave encryption type as Microsoft-managed keys
- Check the box for Enable infrastructure encryption
Complete the creation and wait for deployment
Navigate to Security + networking > Encryption
Confirm that infrastructure encryption shows as Enabled
Compare this with the account from Lab 1 -- note the difference in the encryption configuration

Lab 3: Create a Key Vault and Generate an Encryption Key

bash

# Create a resource group for the lab
az group create --name lab-encryption-rg --location eastus

# Create a Key Vault with purge protection
az keyvault create \
  --name labkv$(date +%s | tail -c 8) \
  --resource-group lab-encryption-rg \
  --location eastus \
  --enable-purge-protection true

# Generate an RSA-2048 encryption key
az keyvault key create \
  --vault-name <your-keyvault-name> \
  --name lab-storage-key \
  --kty RSA \
  --size 2048

# List the key to verify creation
az keyvault key show \
  --vault-name <your-keyvault-name> \
  --name lab-storage-key \
  --query "{Name:key.kid, KeyType:key.kty, KeySize:key.n}" \
  --output table

Lab 4: Review CMK Configuration Options in the Portal

Begin creating a new storage account (do not deploy)
Navigate to the Encryption tab
Select Customer-managed keys as the encryption type
Observe the additional fields that appear:
- Key vault and key selection
- Encryption key (select from vault or enter URI)
- User-assigned identity or System-assigned identity
Note the option to choose Blobs and files only vs. All service types
Cancel the creation -- this is a conceptual review only

Lab 5: Compare Encryption Settings Between Accounts

Navigate to the storage account from Lab 1 (default encryption)
Go to Security + networking > Encryption and screenshot the settings
Navigate to the storage account from Lab 2 (infrastructure encryption)
Go to Security + networking > Encryption and screenshot the settings
Compare the two accounts side by side:
- Both use Microsoft-managed keys
- Lab 2 account has the additional infrastructure encryption layer
- Note that neither setting can be changed post-creation

Lab 6: Encryption Scopes

Navigate to storage account > Encryption > Encryption scopes
Create an encryption scope with Microsoft-managed keys
Create a container with that scope as default
Upload a blob -- verify it uses the default scope
Upload another blob specifying a different scope under Advanced settings

Clean Up

After completing the labs, delete the resource group to avoid ongoing charges:

bash

az group delete --name lab-encryption-rg --yes --no-wait

Labs

Extras

Azure Storage Encryption ​

Overview ​

Encryption Key Management Options ​

1. Microsoft-Managed Keys (MMK) -- Default ​

2. Customer-Managed Keys (CMK) ​

3. Infrastructure Encryption (Double Encryption) ​

Encryption Architecture Diagrams ​

Encryption Layers ​

Customer-Managed Keys Architecture ​

Encryption Decision Tree ​

Encryption Scopes ​

How Encryption Scopes Work ​

Cross-Tenant Customer-Managed Keys ​

Service Scope Limitations ​

Creating an Encryption Scope ​

Multi-Tenant Encryption Scope Architecture ​

Encryption Scope CLI Reference ​

Key Rotation ​

All Data Encrypted at Rest Since 2017 ​

CLI and PowerShell Reference ​

Create Storage Account with Infrastructure Encryption ​

Create Key Vault for CMK ​

Configure CMK on a Storage Account ​

Check Encryption Settings ​

Summary Comparison ​

MS Learn References ​

Lab Exercises ​

Lab 1: Observe Default Encryption (Microsoft-Managed Keys) ​

Lab 2: Create a Storage Account with Infrastructure Encryption ​

Lab 3: Create a Key Vault and Generate an Encryption Key ​

Lab 4: Review CMK Configuration Options in the Portal ​

Lab 5: Compare Encryption Settings Between Accounts ​

Lab 6: Encryption Scopes ​

Azure Storage Encryption

Overview

Encryption Key Management Options

1. Microsoft-Managed Keys (MMK) -- Default

2. Customer-Managed Keys (CMK)

3. Infrastructure Encryption (Double Encryption)

Encryption Architecture Diagrams

Encryption Layers

Customer-Managed Keys Architecture

Encryption Decision Tree

Encryption Scopes

How Encryption Scopes Work

Cross-Tenant Customer-Managed Keys

Service Scope Limitations

Creating an Encryption Scope

Multi-Tenant Encryption Scope Architecture

Encryption Scope CLI Reference

Key Rotation

All Data Encrypted at Rest Since 2017

CLI and PowerShell Reference

Create Storage Account with Infrastructure Encryption

Create Key Vault for CMK

Configure CMK on a Storage Account

Check Encryption Settings

Summary Comparison

MS Learn References

Lab Exercises

Lab 1: Observe Default Encryption (Microsoft-Managed Keys)

Lab 2: Create a Storage Account with Infrastructure Encryption

Lab 3: Create a Key Vault and Generate an Encryption Key

Lab 4: Review CMK Configuration Options in the Portal

Lab 5: Compare Encryption Settings Between Accounts

Lab 6: Encryption Scopes
